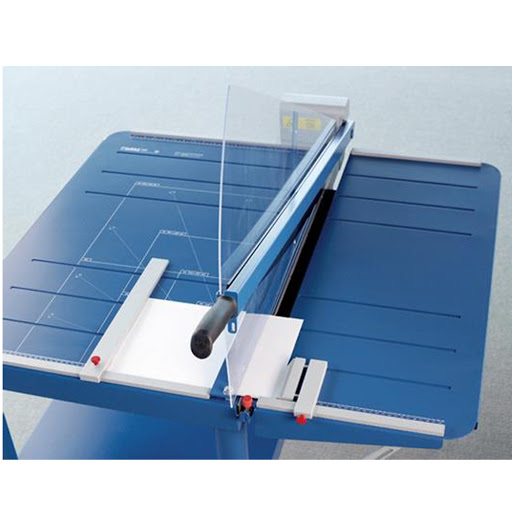

DAHLE 580
德國達樂牌專業物料鍘刀連条狀切割器， 可切長815mm， 厚4.0mm
上下刀採用德國Solingen鋼制造, 上弧型鍘刀加下平刀, 切割時同時磨刀, 令切割非常完美。
備有自動檔刀板, 刀向下切時, 刀檔板會自動降下防止切到手.
備有可自選切紙時是否需要壓實紙張，適合切割有凸凹紋紙品不會受壓。
另備有條狀切割器, 可切割纸条。
Ergonomically shaped handle
Two scale bars with mm scale for an exact 90° cut
2 scale bars
Sturdy, solid-steel blade holder for optimum guidance of the screw-mounted upper blade
Transparent blade guard for cutting safety and unobstructed view of the item being cut
High-quality, re-sharpenable blades made of Solingen steel
Blades can be sharpened
Narrow guide channels in the table prevent individual sheets from slipping through
Clamp can be applied manually or deactivated
Supporting table included
Adjustable metal backstop in guide channels for quickly finding the right format – can be used on both scale bars and the front table
Precision narrow-strip cutting device for cutting extremely thin strips is optionally available (793)
Precision laser beam line indication available
Narrow-strip cutting device optional
High-quality guillotines for commercial use
Practical format lines on the table facilitate exact alignment of the item being cut
Material blade suitable for a wide range of different materials - different grind to paper blades.
The full cutting height given cannot always be used with some materials deemed suitable for cutting: the full cutting height should definitely not be used when cutting paper. In this instance, we recommend using a guillotine with a paper blade.
Material blade
Can be locked to prevent unauthorised use
Sturdy metal table with rounded corners for firm standing
Screw-mounted, ground material upper blade and ground lower blade for precision cutting a wide range of materials
Convenient foot clamping for evenly clamping large-format items
Folding front table with guide channels
Precision laser beam line indicator for professional cutting results is optionally available (797)
Permanently attached stand with storage shelf for an optimum working height of 74 mm
Lower frame included
Sturdy solid metal table
Product name 580
Cutting length 815 mm
DIN A2
Cutting capacity 4 mm
Table size (overall dimensions) 865 mm x 580 mm
Weight net 60 kg
Table size (overall dimensions) with supporting table 865mm x 960mm
